Standalone ArchiTech Series combine attractive, durable Grade 1 locksets with proven wireless Networx access control technology in one aesthetically - pleasing standalone access control and locking package, with keyless automatic deadbolt option. Ideal for all discriminating applications, from high-rise residences or offices to universities, anywhere keyless access control would be welcome and convenient. Supports a variety of access control credentials from ID cards and badges, e.g., prox., mag stripe and smart cards, to several keyfob styles.
Features: • 5000 Users, 500 Scheduled Events & 40,000 Event Audit Trail • Surface-Mount or Mortised-in Electronics and Battery Pack • Lock available in Mortise and Cylindrical versions • Automatic-Deadbolt option for automatic keyless
 locking of deadbolt upon exiting, ideal for residential
 applications • Prox Reader can be incorporated into Decorative
 Apartment Number Plate • Real Time Clock • Uses 4 AA Batteries – 3 to 4 year battery life using advanced Power-Saver circuit. • Operated via access card, key fob etc • DL-Windows Software for programming • USB Radio Gateway Method or Via Networx Gateways or Repeater (Ethernet, 802.11 or POE) • Manual Card Enrollment Option for Quick Installation • Wireless programming range: up to 100 ft. • Lifetime Mechanical Warranty Specifications: • ANSI / BHMA Grade 1 Certified, UL Listed 3 Hours • Includes standard lever rose hardware design • Compatible with all 300+ optional architectural trim / lever or knob designs • Electro-mechanical button for ANSI F20 Function for
 Apartment Entry • Stainless steel latch, 2-3/4” backset • Auto-Reverse lock body tested to 6 million cycles • Lock Body - Self cleaning long life motor • Door closure monitor / electronic deadbolt monitor • Key override standard or high-security • Optional integrated door position indicator switch

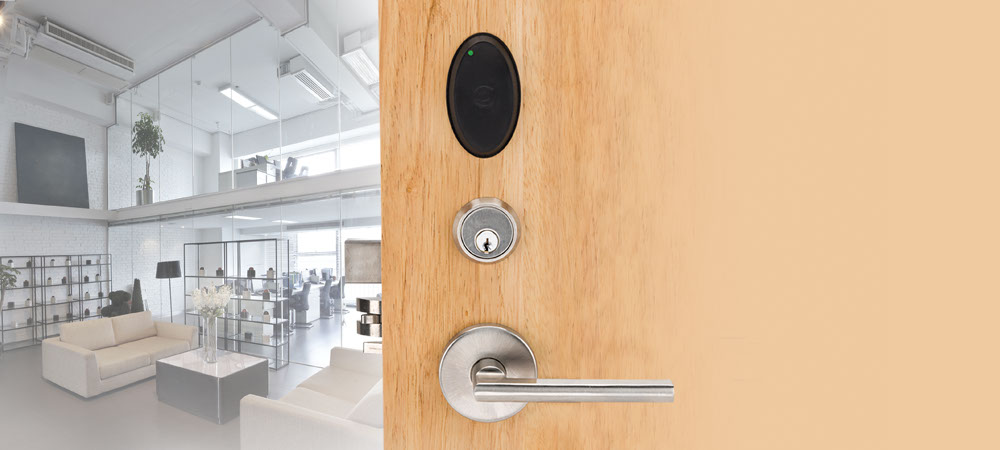

Shown with mortised-in electronics and batteries
